AL310
description

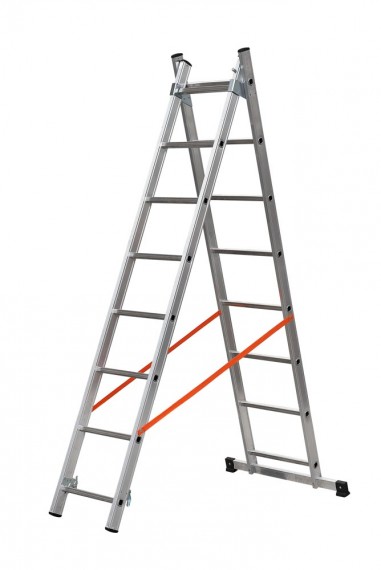

2 sections extending ladder parallel uprights Gierre Modula AL310 is equipped with anti-opening rope and a non-slip stabilizer bar.
-
D.LGS. 81/08EN 131
- made in Italy
-
max load kg
-
years warranty
highlights
Steel hinge.
(clicca sulle immagini)
configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 3.48 |
| sizes of the closed product when packed (HxLxP mt) | 2.30x0.47x0.12 |
| sizes of the closed product without packaging (HxLxP mt) | 2.28x0.45x0.10 |
| dimensione massima base scala aperta doppia (m) | 1.50 |
| open product max. height (m) | 2.15 |
| closed length (m) | 2.28 |
| product weight with packaging (kg) | 10.30 |
| product weight without packaging (kg) | 9.80 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x8 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 0.80 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 2 |
| width at the base of the trunk (m) | 0.80 |
| upper trunk width (m) | 0.40 |
| materiale articolazione | steel |
configuration extended
| max load (kg) | 150 |
| max working height (mt) | 4.6 |
| sizes of the closed product when packed (HxLxP mt) | 2.32x0.47x0.12 |
| sizes of the closed product without packaging (HxLxP mt) | 2.30x0.45x0.10 |
| open product dimensions (mt) | 2.30x0.80x0.10 |
| open product max. height (m) | 3.56 |
| closed length (m) | 2.28 |
| max. full product lenght (m) | 3.70 |
| product weight with packaging (kg) | 10.30 |
| product weight without packaging (kg) | 9.80 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x8 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 0.80 |
| profiles / uprights section (mm) | 60x22 |
| width at the base of the trunk (m) | 0.40 |
| upper trunk width (m) | 0.40 |
| materiale articolazione | steel |
