AL315
description

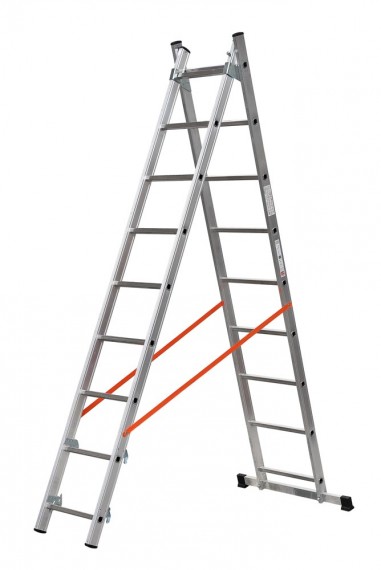

2 sections extending ladder parallel uprights Gierre Modula AL315 is equipped with anti-opening rope and a non-slip stabilizer bar.
-
D.LGS. 81/08EN 131
- made in Italy
-
max load kg
-
years warranty
highlights
Steel hinge.
(clicca sulle immagini)
configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 3.7 |
| sizes of the closed product when packed (HxLxP mt) | 2.58x0.92x0.13 |
| sizes of the closed product without packaging (HxLxP mt) | 2.56x0.45x0.11 |
| dimensione massima base scala aperta doppia (m) | 1.70 |
| open product max. height (m) | 2.46 |
| closed length (m) | 2.56 |
| product weight with packaging (kg) | 10.60 |
| product weight without packaging (kg) | 10.10 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x9 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 0.90 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 2 |
| width at the base of the trunk (m) | 0.40 |
| upper trunk width (m) | 0.40 |
| materiale articolazione | steel |
configuration extended
| max load (kg) | 150 |
| max working height (mt) | 5.16 |
| sizes of the closed product when packed (HxLxP mt) | 2.58x0.92x0.13 |
| sizes of the closed product without packaging (HxLxP mt) | 2.56x0.45x0.11 |
| open product dimensions (mt) | 2.56x0.90x0.11 |
| open product max. height (m) | 4.12 |
| closed length (m) | 2.56 |
| max. full product lenght (m) | 4.26 |
| product weight with packaging (kg) | 10.60 |
| product weight without packaging (kg) | 10.10 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x9 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| profiles / uprights section (mm) | 60x22 |
| width at the base of the trunk (m) | 0.90 |
| upper trunk width (m) | 0.40 |
| materiale articolazione | steel |
