AL315HHL
description
2 sections extending ladder parallel uprights Hobbylot , ref. AL315HHL, 2x9 rungs.
Suitable for DIY and for non-intensive use.
Non-slip feet, high grip.
Knurled aluminium uprights.
Electrowelded reinforced steel hinge.
25x25 mm rung, squared.
Certification: EN131 D.Lgs. 81/08.
Max load: 150 kgs.
-
D.LGS. 81/08EN 131
- made in Italy
-
max load kg
-
years warranty

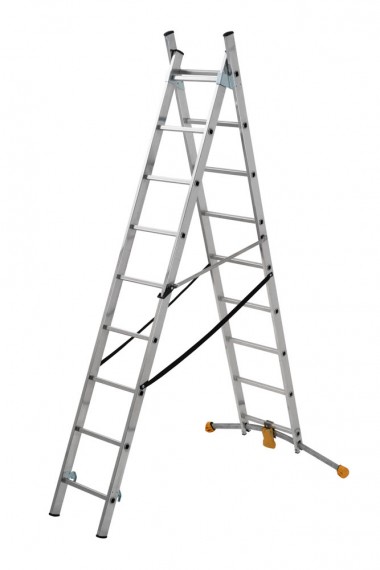

configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 3.81 |
| sizes of the closed product when packed (HxLxP mt) | 2.73x0.48x0.12 |
| sizes of the closed product without packaging (HxLxP mt) | 2.71x0.46x0.10 |
| dimensione massima base scala aperta doppia (m) | 1.69 |
| open product max. height (m) | 2.55 |
| closed length (m) | 2.71 |
| max. full product lenght (m) | 2.61 |
| product weight with packaging (kg) | 12.00 |
| product weight without packaging (kg) | 11.50 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x9 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 2 |
| materiale articolazione | steel |

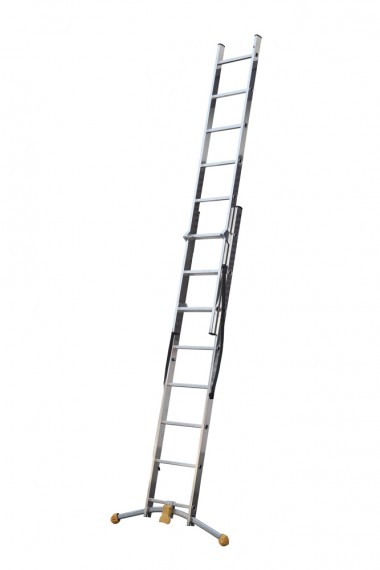

configuration extended
| max load (kg) | 150 |
| max working height (mt) | 4.95 |
| sizes of the closed product when packed (HxLxP mt) | 2.73x0.48x0.12 |
| sizes of the closed product without packaging (HxLxP mt) | 2.71x0.46x0.10 |
| open product dimensions (mt) | 4.06x1.20x0.10 |
| open product max. height (m) | 3.92 |
| closed length (m) | 2.71 |
| max. full product lenght (m) | 4.06 |
| product weight with packaging (kg) | 12.00 |
| product weight without packaging (kg) | 11.50 |
| type of steps / rungs | rungs |
| number of steps or rungs | 2x9 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 2 |
| materiale articolazione | steel |
