AL405HHL - hobbylot
description
3 sections extending ladder parallel uprights AL405HHL is equipped with anti-opening rope and a non-slip stabilizer bar.
-
D.LGS. 81/08EN 131
- made in Italy
-
max load kg
-
years warranty
highlights

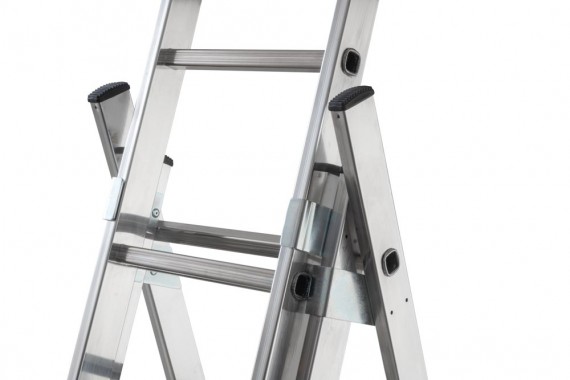

Steel hinge
(clicca sulle immagini)

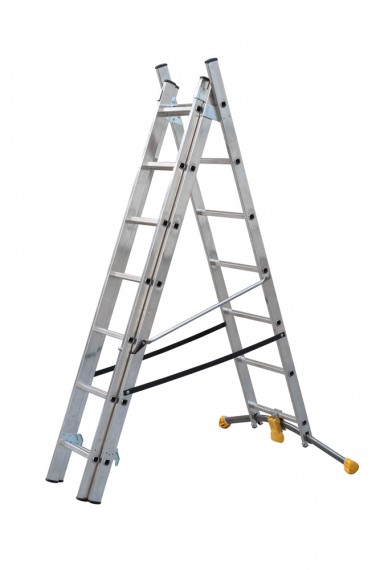

configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 3.27 |
| sizes of the closed product when packed (HxLxP mt) | 2.17x0.48x0.17 |
| sizes of the closed product without packaging (HxLxP mt) | 2.15x0.46x0.15 |
| open product dimensions (mt) | 2.05x1.20x0.10 |
| dimensione massima base scala aperta doppia (m) | 1.35 |
| open product max. height (m) | 2.05 |
| closed length (m) | 2.15 |
| max. full product lenght (m) | 2.05 |
| product weight with packaging (kg) | 14.90 |
| product weight without packaging (kg) | 14.40 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x7 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |

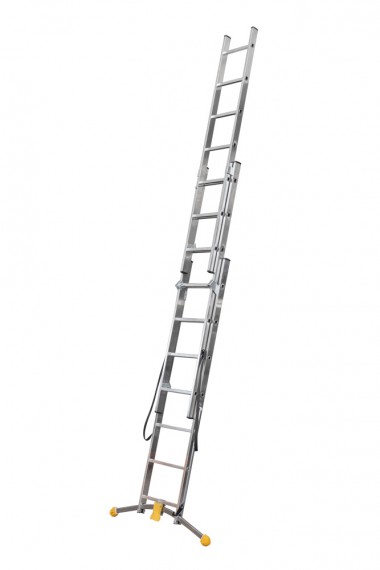

configuration extended
| max load (kg) | 150 |
| max working height (mt) | 4.96 |
| sizes of the closed product when packed (HxLxP mt) | 2.17x0.48x0.17 |
| sizes of the closed product without packaging (HxLxP mt) | 2.15x0.46x0.15 |
| open product dimensions (mt) | 4.07x1.20x0.15 |
| open product max. height (m) | 3.90 |
| closed length (m) | 2.15 |
| max. full product lenght (m) | 4.07 |
| product weight with packaging (kg) | 14.90 |
| product weight without packaging (kg) | 14.40 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x7 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |

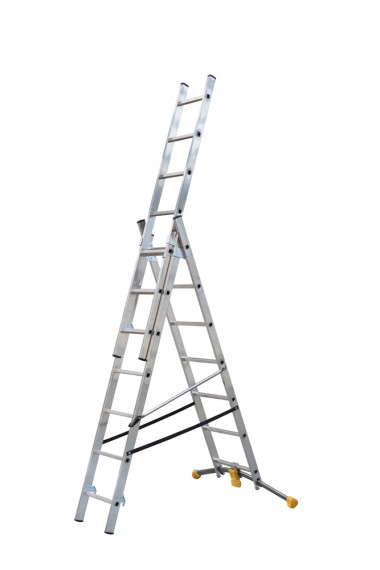

configuration stairway
| max load (kg) | 150 |
| max working height (mt) | 3.84 |
| sizes of the closed product when packed (HxLxP mt) | 2.17x0.48x0.17 |
| sizes of the closed product without packaging (HxLxP mt) | 2.15x0.46x0.15 |
| open product dimensions (mt) | 3.19x1.20x1.35 |
| dimensione massima base scala aperta doppia (m) | 1.35 |
| open product max. height (m) | 3.03 |
| closed length (m) | 2.15 |
| max. full product lenght (m) | 3.19 |
| product weight with packaging (kg) | 14.90 |
| product weight without packaging (kg) | 14.40 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x7 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |
