AL435HHL - hobbylot
description
3 sections extending ladder parallel uprights Hailo AL435HHL is equipped with anti-opening rope and a non-slip stabilizer bar.
-
D.LGS. 81/08EN 131
- made in Italy
-
max load kg
-
years warranty

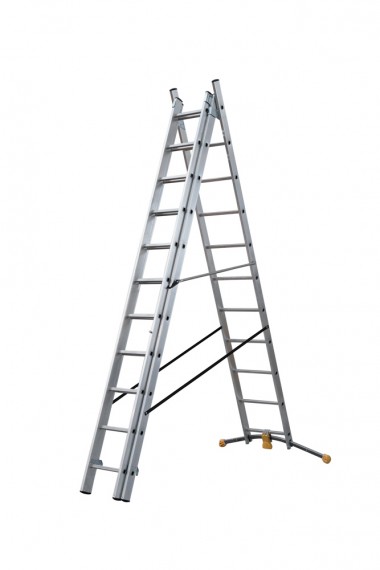

configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 4.35 |
| sizes of the closed product when packed (HxLxP mt) | 2.73x0.48x0.17 |
| sizes of the closed product without packaging (HxLxP mt) | 3.28x0.46x0.17 |
| open product dimensions (mt) | 3.14x3.18x2.07 |
| dimensione massima base scala aperta doppia (m) | 2.07 |
| open product max. height (m) | 3.14 |
| closed length (m) | 3.28 |
| max. full product lenght (m) | 3.18 |
| product weight with packaging (kg) | 23.00 |
| product weight without packaging (kg) | 22.50 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x11 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |

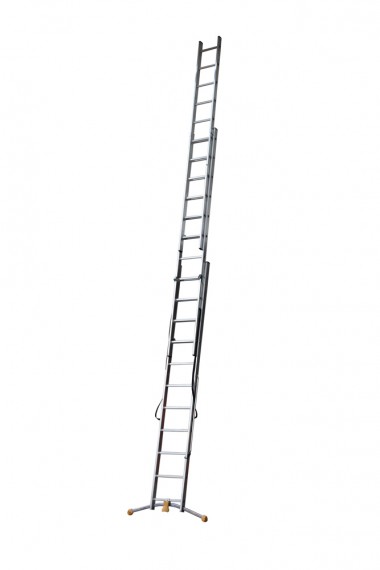

configuration extended
| max load (kg) | 150 |
| max working height (mt) | 7.6 |
| sizes of the closed product when packed (HxLxP mt) | 3.30x0.48x0.19 |
| sizes of the closed product without packaging (HxLxP mt) | 3.28x0.46x0.17 |
| open product dimensions (mt) | 6.90x1.20x0.17 |
| open product max. height (m) | 6,63 |
| closed length (m) | 3.28 |
| max. full product lenght (m) | 6.90 |
| product weight with packaging (kg) | 23.00 |
| product weight without packaging (kg) | 22.50 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x11 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |

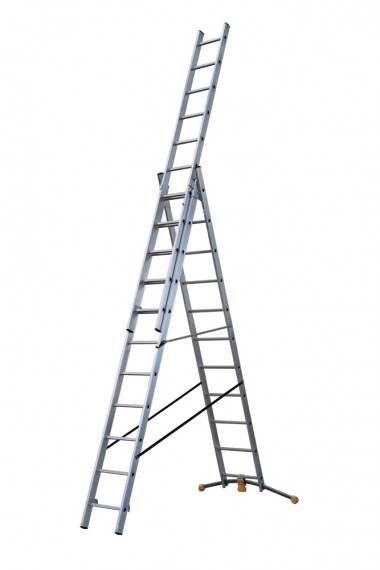

configuration stairway
| max load (kg) | 150 |
| max working height (mt) | 5.43 |
| sizes of the closed product when packed (HxLxP mt) | 3.30x0.48x0.19 |
| sizes of the closed product without packaging (HxLxP mt) | 3.28x0.46x0.17 |
| open product dimensions (mt) | 4.64x4.89x2.07 |
| dimensione massima base scala aperta doppia (m) | 2.07 |
| open product max. height (m) | 4.64 |
| closed length (m) | 3.28 |
| max. full product lenght (m) | 4.89 |
| product weight with packaging (kg) | 23.00 |
| product weight without packaging (kg) | 22.50 |
| type of steps / rungs | rungs |
| number of steps or rungs | 3x11 |
| steps width / rungs section (mm) | 25x25 |
| type of base | parallel uprights |
| base dimensions (LxP mt) | 1.20 |
| profiles / uprights section (mm) | 60x22 |
| quantity of plans / sections | 3 |
| materiale articolazione | steel |
