AL065
description

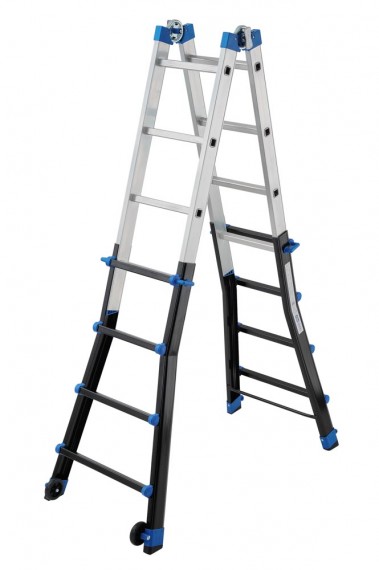

Professional multifuction telescopic ladder GierrePro AL065 is equipped with a pressed steel joint with reinforcing rib, high grade.
Automatic positioning in three (fixes) positions.
The joint in assemblead directly on the rung, without using rivet.
Ergonomic hand grip, easy to handle.
Internal and external upright in extruded aluminium.
Special, with chamber and resistance ribs on the whole profile.
Ergonomic handle.
Bi-component external foot.
Non-slip internal foot.
-
D.LGS. 81/08EN 131 - 4
- made in Italy
-
max load kg
-
years warranty
highlights
Pressed steel joint with reinforcing rib, high grade. Automatic positioning in three (fixed) positions. The joint is assembled directly on the rung, without using rivets.
(clicca sulle immagini)

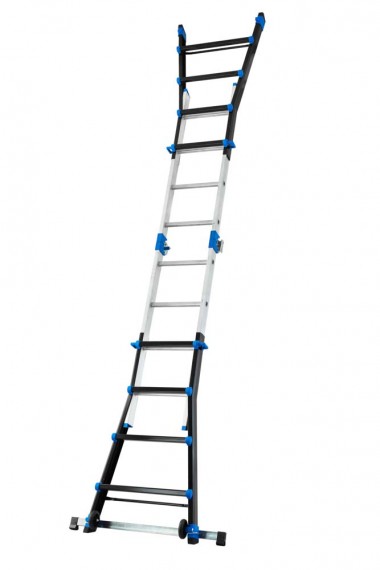

configuration double sided
| max load (kg) | 150 |
| max working height (mt) | 3.32 |
| sizes of the closed product when packed (HxLxP mt) | 1.29x0.67x0.31 |
| sizes of the closed product without packaging (HxLxP mt) | 1.27x0.65x0.29 |
| open product max. height (m) | 2.09 |
| closed length (m) | 1.27 |
| max. full product lenght (m) | 2.10 |
| product weight with packaging (kg) | 14.500 |
| product weight without packaging (kg) | 14.000 |
| number of steps or rungs | 4+4 |
| steps width / rungs section (mm) | 30x30 |
| type of base | flared |
| profiles / uprights section (mm) | 73x26 |
| use on staggered planes | yes |
| stabilizer bar including | 1 |
| materiale articolazione | steel |
| materiale piedini | bi-component |
configuration GIERREPRO AL065 PROFESSIONAL TELESCOPIC MULTIFUNCTION LADDER
| max load (kg) | 150 |
| max working height (mt) | 4.96 |
| sizes of the closed product when packed (HxLxP mt) | 1.29x0.67x0.31 |
| sizes of the closed product without packaging (HxLxP mt) | 1.27x0.65x0.29 |
| open product max. height (m) | 3.99 |
| closed length (m) | 1.27 |
| max. full product lenght (m) | 4.12 |
| product weight with packaging (kg) | 14.500 |
| product weight without packaging (kg) | 14.000 |
| number of steps or rungs | 4+4 |
| steps width / rungs section (mm) | 30x30 |
| type of base | flared |
| profiles / uprights section (mm) | 73x26 |
| stabilizer bar including | 1 |
| materiale articolazione | steel |
| materiale piedini | bi-component |
kit
D4043
D4046
D4047
D4048
